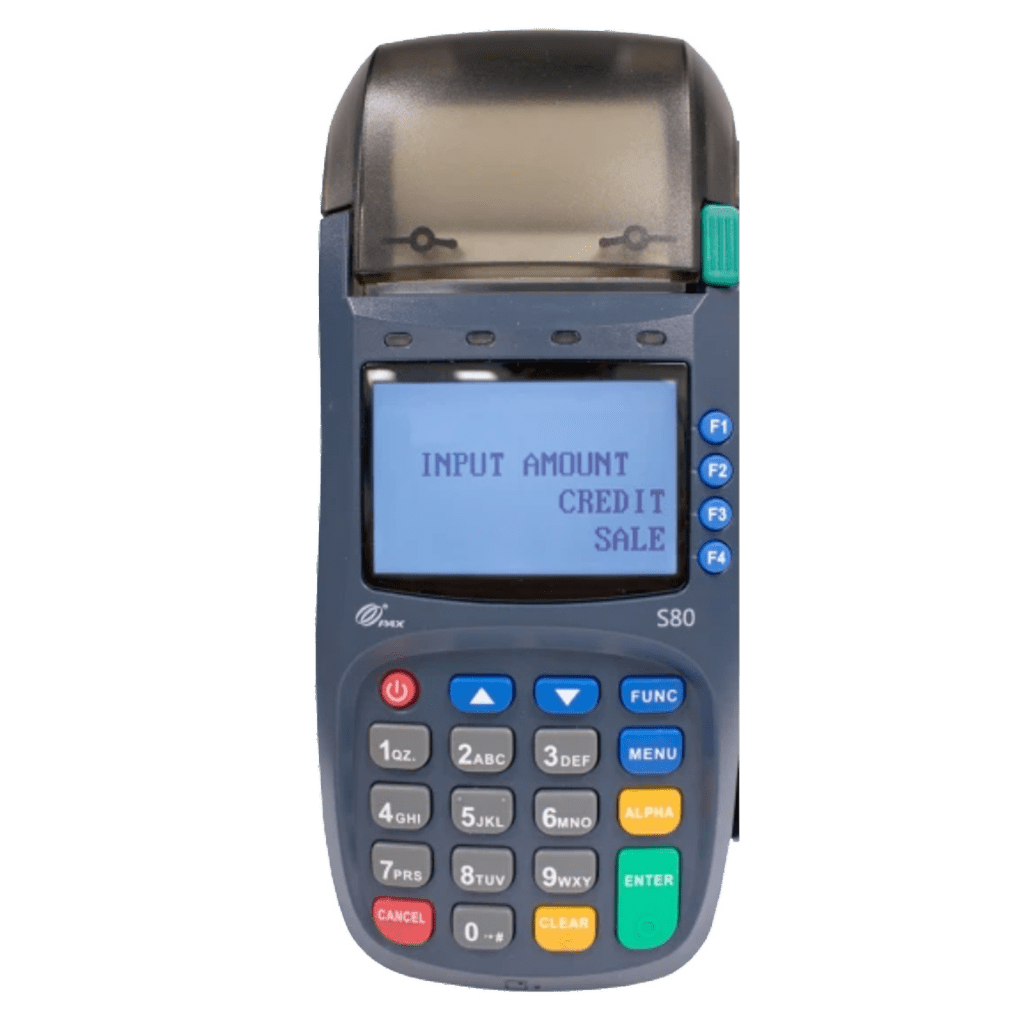

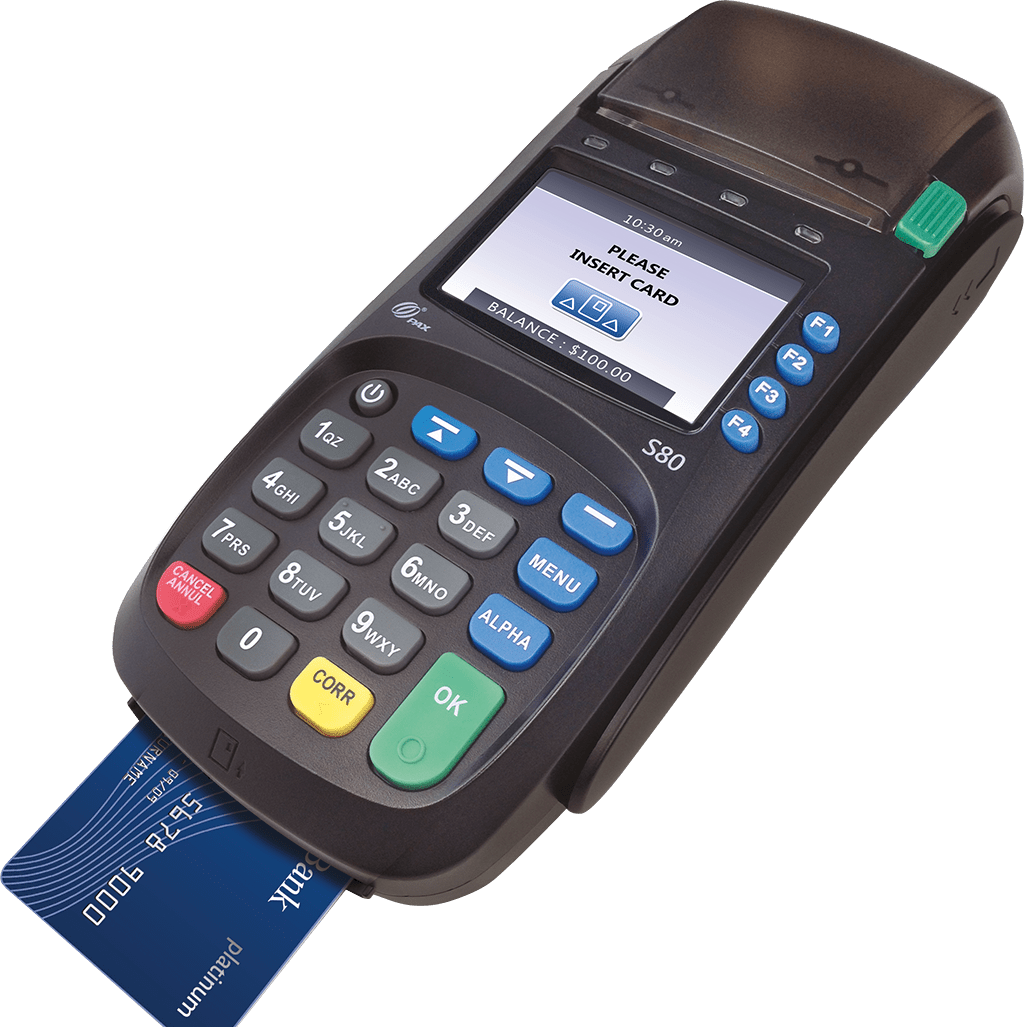

PAX S80 – Terminal

Original price was: $249.99.Current price is: $35.00.

Features Include:


Processor 32-bit ARM11
Memory 192MB (128MB Flash, 64MB SDRAM)
Display 128 x 64 pixel LCD, White backlit
Keypad 10 numeric / letter & 8 function keys
4 ATM keys, 1 Power ON / OFF key
Printer Thermal printer, Speed: 25 lps
Standard paper roll: 58mm (2.25 in.)
Magnetic Card Reader Track 1 / 2 / 3, bi-directional, ISO7812
Smart Card Reader 1 user card, EMV
Contactless Card Reader (built-in) 13.56MHz, ISO14443 Type A/B, Mifare, Felica, NFC
Maximum effective distance up to 4cm 4 RF Indicators: Blue, Yellow, Green, Red
Card Slots 3 SAMs, ISO7816 Communication
Modem Sync. (HDLC up to 9600bps);
Async. (V.92, up to 56kbps)
Ethernet (optional)
Peripheral Ports 1 x PINPad, 1 x RS232, 1 x Ethernet,
1 x Line, 1 x mini USB (OTG)
Security PCI PTS 3.x approved DUKPT, Master / Session, DES, 3DES ANSI / ISO9564 format 0,1,3 PIN ciphered key algorithm ANSI X 9.9 / X 9.19 MAC algorithm
Voltage Input: 100~240VAC,50Hz / 60Hz, 1.5A
Output: 8.2VDC, 3A
Physical Length: 216mm (8.5 in.)
Width: 95mm (3.74 in.)
Height: 86 mm (3.390 in.)
Weight 525g

Full PAX S80 Product Details
